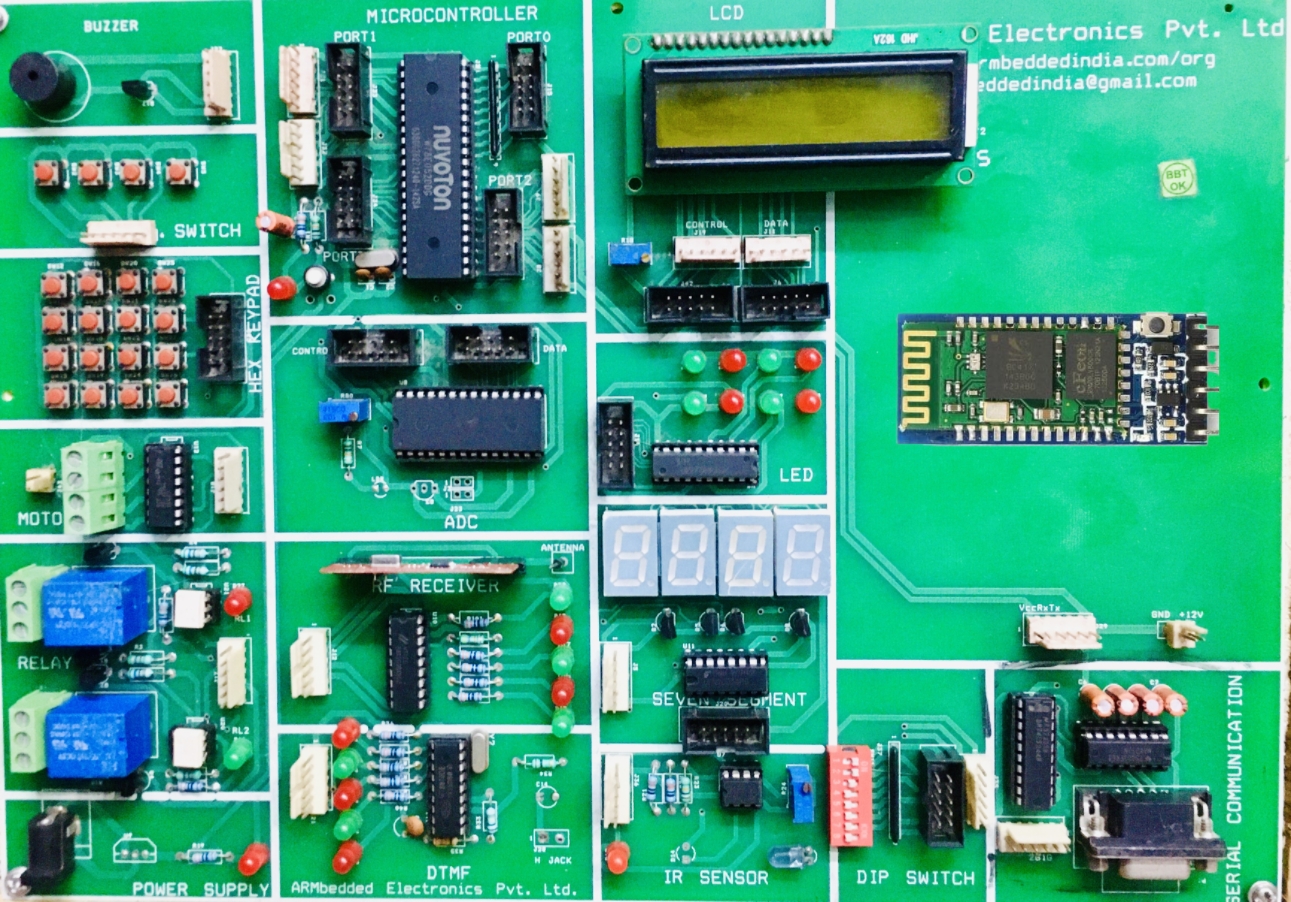

Bluetooth Trainer Kit
TECHNICAL SPECIFICATION :
Carrier Frequency: 2.40GHz to 2.48 GHz
Two 6V relays with isolated O/Ps.
Bandwidth: 80MHz
All interrupts available on header.
Modulation: GFSK,1Mbps
16X2 LCD display
Channels: 79 Nos.
8 I/Ps from DIP switches.
Channel Interval: 1MHz
8 O/Ps available on LED's
Frequency Hoping: 1600 Hops per sec
Four multiplexed 7-segment displays
Transmission Power: +4 dbm max(2.5mW)
4 push buttons for interrupt study
Transmission Range: 10 meter (approx.)
Windows based driver software for programming.
Output interface: UART
4x4 Matrix Hex Keypad
Operating Voltage: 3.7V to 5V
Stepper and D.C MotorModule
Antenna: Whip Antenna
Buzzer Section
Main supply: 90-275V,50Hz
IR Transmitter/ Receiver
Nuvoton W78E052D C with ISP features
LDR (Light Dependent Resistor).
In- circuit Programming and serial communication through PC.
LM- 35 Temperature Sensor
8-bit-8 channel ADC with I/Ps from multi-turns potentiometers.
DTMF
8- bit single channel DAC
RF Receiver/RF Transmitter
FUNCTIONS :
Understanding The Bluetooth System
How Bluetooth works
Methods Used in Pairing the Bluetooth Devices
Real Time Study of Bluetooth
Controlling The Appliances Using Smartphones
Application software used to transfer the data over Bluetooth
